Okin Model JLDQ-11 & JLDQ.11.156.333P Power Recliner Lift Chair Motor, JLDQ.11.156.333P Electric Sofa Couch Actuator Replacement Parts
$161.98
- APPLICATION: Different actuator/motors are not compatible with frame, the frame has strict demand for actuator/motors' minimum install dimension, stroke and plugs, please check your motor brand and model first. This motor part is suggested to replace OKIN model JLDQ.11.156.333P.
- DESCRIPTION: The actuator motor set is made of 1 motor and 3 connectors, connector with 5-pin round plug is for switch hand control, connector with 2-pin square plug and clip is for power supply, connector with 2-pin socket is for slaved motor.

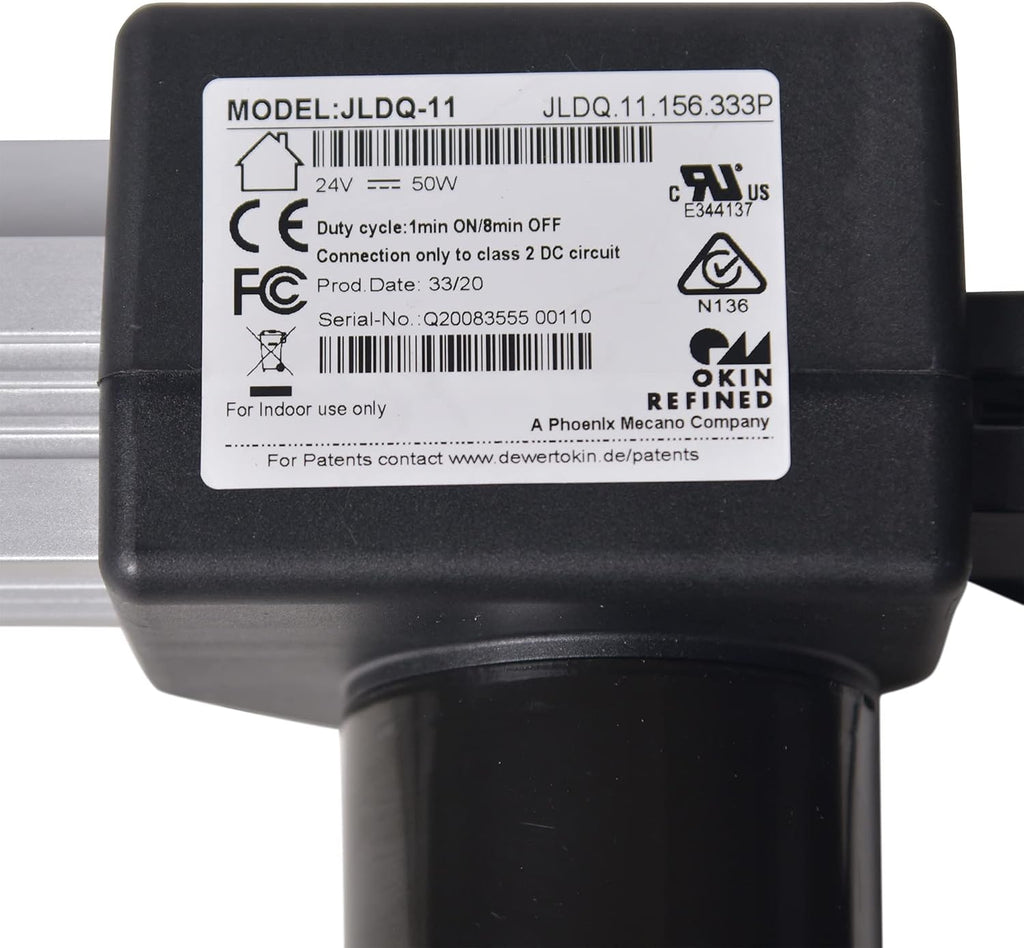

- SPECIFICATION: Appearance: black (PA), silver white (aluminum); Stroke: 333mm ; Minimum dimensions (shrink): 156mm; Maximum dimension: 489mm; Load: push force: 650N, pull force: 650N.
- NOTE: Please troubleshoot the switch and power supply first, then check the motor and plug, see if it matches your recliner motor.
- PACKAGE: 1* Okin refined motor. Easy to install.
Specifications
- Brand: Okin
- Color: Black
- Fabric Type: Aluminum
- Pattern: Solid
- Size: JLDQ.11.156.333P
- Dimensions: 22 x 6.7 x 3.5 inches
- Item Weight: 5.5 pounds
- Maximum Weight Recommendation: 146 pounds
- Included Components: Okin Refined Motor
- Form Factor: Recliner
- Shape: Rectangular
- Additional Features: Power Lift, Reclining
- Recommended Uses For Product: Relaxing, Watching TV, Reading, Sleeping
- Room Type: Living Room
